Cord Grips, Liquid Tight Straight Through NPT

Cord Grips, Liquid Tight Straight Through NPT

Click to enlarge

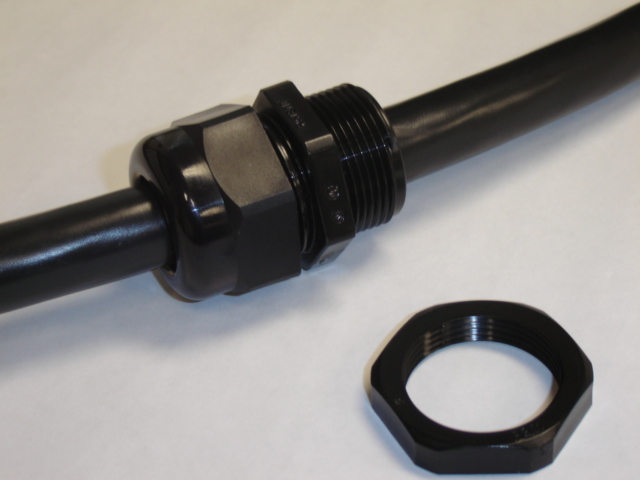

Cord Grips provide an efficient and clean way to secure cord through a panel
All nylon construction
We recommend using the cordgrip with the smallest maximim diameter that will fit your application
Acme threads on body prevent skipping and speed installation
Available in black and gray
Lock nuts not included

*Please select the quantity for each item you wish to order and click the 'Add To Quote' button below.

Part No.		Min. Dia.	Max. Dia.	Color	Desc./NPT Thread Size	Clearance Hole	Max. O.A. Length	Thread Length		Add Qty.
M4516		.115	.250	Black	LTCG1/4	.540	1.28	.45
M4517		.115	.250	Gray	LTCG1/4	.540	1.28	.45
3228		.181	.312	Black	LTF-3/8	.67	1.49	.53
3229		.181	.312	Gray	LTF-3/8	.67	1.49	.53
3231		.170	.450	Black	LTF-1/2	.875	1.72	.62
3232		.170	.450	Gray	LTF-1/2	.875	1.72	.62
3234		.450	.709	Black	LTF-3/4	1.068	1.97	.63
3235		.450	.709	Gray	LTF-3/4	1.068	1.97	.63
8437		.590	1.000	Black	LTF 1	1.350	2.42	.75
8438		.590	1.000	Gray	LTF 1	1.350	2.42	.75
